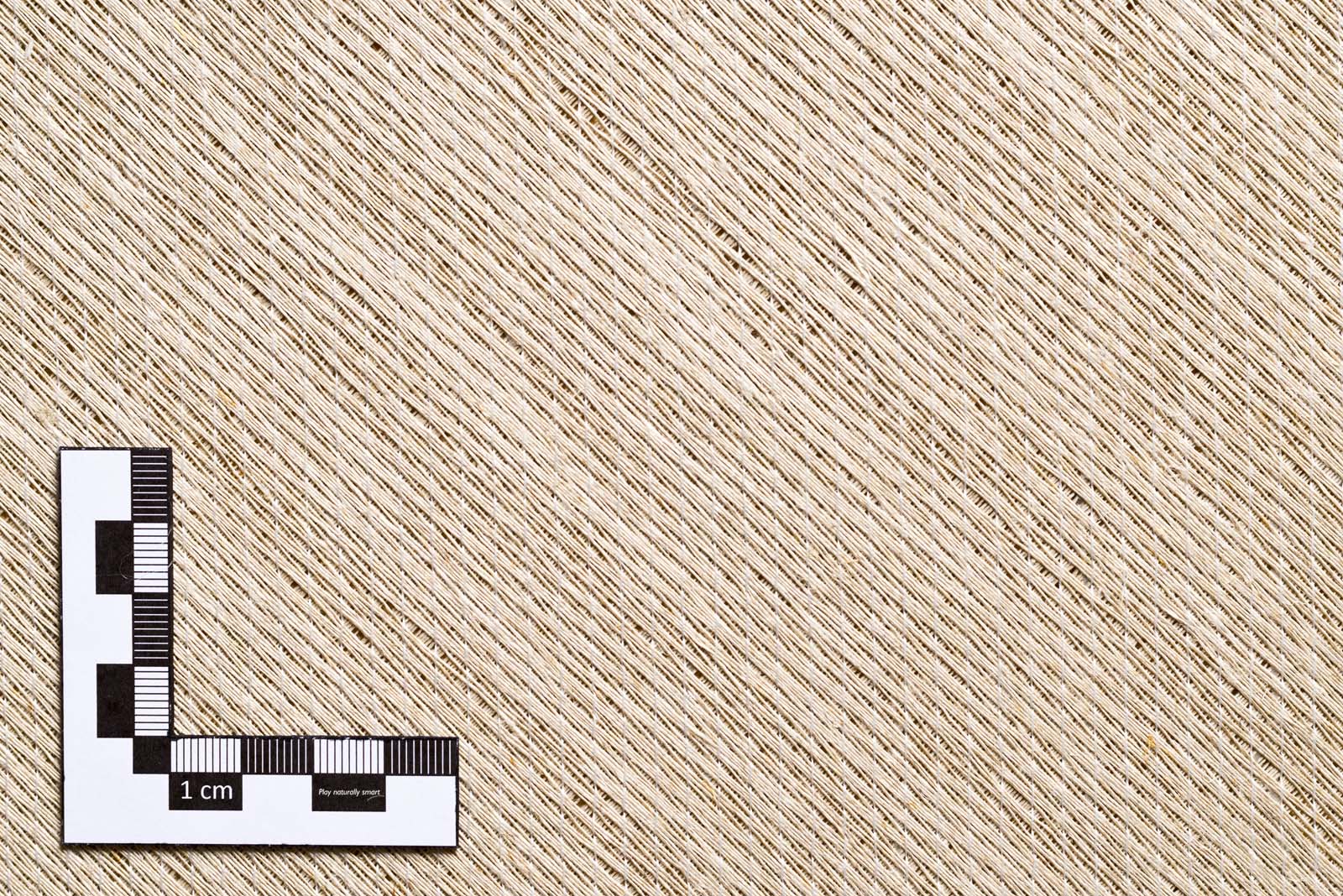

Bcomp flax fabric (+/-45 Bi-axial)

€25.00 – €50.00 "incl. VAT"

Natural flax from Bcomp.

This material is 100% natural and excellent for all products. The stiffness is higher then glass fabric, but lower then carbon. Please see datasheet and try simulator to get an idea.

+/-45 degree layers in total 350g (175g each).

thickness 0.5mm

select width 640mm or 1280mm.

pr. 1m length. If more is ordered then it is rolled as one piece.

Another great property is that the material works well as a dampener. This means you can use the Biaxial and UD flax together or you can combine them with glass or carbon.

For sumulation use:

Density: 1350

Y modulus: 58500

Please see datasheet for more: t-flachs-5008-e

Instructions: The flax fiber absorbs more resin.

Pneumatic presses with ~5  bar is recommended to make good laminate with minimum excess resin.

Vacuum press: follow this resin quantity recommendations: resin / (resin + fabric) = 60%
Spread the resin well with a roll on a flat surface or pour the epoxy on to the fabric and then make a roll out of it. Then let it soak for some minutes. Much easier than try to smear it out.

 Tip: Use masking tape when cutting it for better result!

SKU: N/A Category:

Description

ampliTex® / Bi-Axial +/- 45° flax fabric /350 gsm

Architecture: +45°/-45°, non crimp, tex 106

Natural flax from Bcomp.

This material is 100% natural and excellent for all products. The stiffness is higher then glass fabric, but lower then carbon.

Another great property is that the material works well as a dampener. This means you can use the Biaxial and UD flax together or you can combine them with glass or carbon.

yarn 106 tex.

Properties: 350 gsm, Bi-axial fabric for high performance and high damping

pr. 1m length. If more is ordered then it is rolled as one piece.

http://bcomp.ch/files/e_tds_biax_5008_5018.pdf

Note: This fabric will take  more epoxy then glass or carbon fabric.

Tip: Use masking tape when cutting it for better result!

Additional information

Weight 0.4 kg
Width

640mm wide, 350g, 1280mm wide, 350g
